Invisible Protection for Critical & Irreplaceable Assets

The Clean Agent Fire Suppression System with FM-200 is engineered to safeguard high-value, mission-critical environments where traditional water or powder-based systems would cause catastrophic secondary damage. FM-200 (HFC-227ea) is a colorless, electrically non-conductive gas that extinguishes fire primarily by removing heat, with a secondary chemical interruption of the combustion chain. It leaves absolutely no residue, ensuring sensitive electronics, historical artifacts, and data remain unharmed by the suppression agent itself.

Key Features & Benefits:

• • Zero Residue: Completely evaporates after discharge, preventing costly damage to servers, switchgear, control panels, and archival materials.

Rapid Extinguishment: Achieves extinguishing concentrations in as little as 10 seconds, minimizing fire damage and business downtime.

• Safe for Occupied Spaces: FM-200 is of low toxicity at design concentrations, allowing for use in normally occupied areas with proper safety precautions (pre-discharge alarms, abort switches).
• Environmentally Considerate: Zero Ozone Depletion Potential (ODP) and a relatively low Global Warming Potential (GWP) compared to older halons.
• Total Flooding Design: Engineered to achieve a uniform extinguishing concentration throughout the entire protected volume (room, cabinet, or sub-floor).
• Automatic & Manual Activation: Can be triggered by smoke detection systems or via manual pull stations located at exits.



System Components:

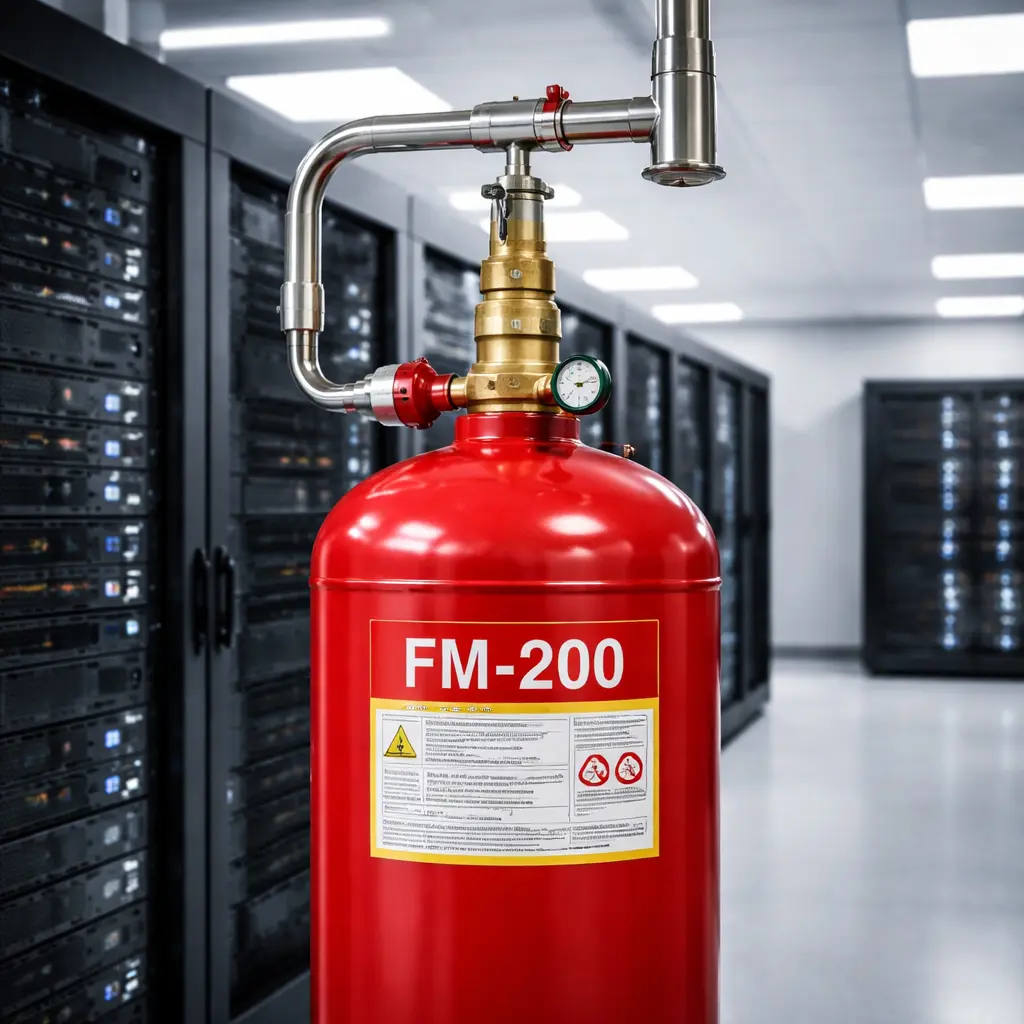

A complete system includes: FM-200 agent storage cylinders, pneumatic or electric release valves, stainless steel pipe network, discharge nozzles, smoke detectors, control panel, audible/visual pre-discharge alarms, and manual abort station.

Typical Applications:

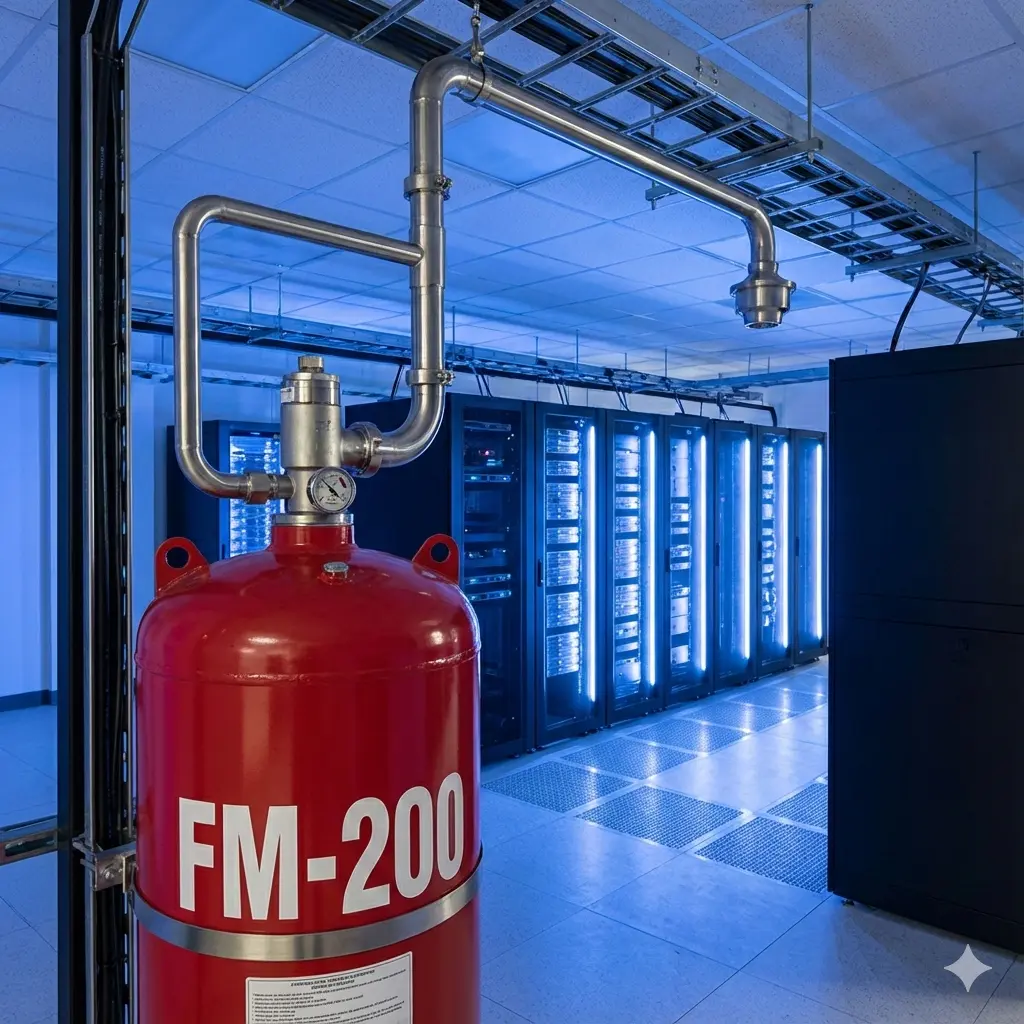

• Data Centers & Server Rooms
• Telecommunication Switches
• Museums, Libraries & Archives
• Medical Diagnostic & Laboratory Equipment Rooms
• Control Rooms for Power Generation & Manufacturing

Technical Specifications (Example for 50KG Cylinder):

Agent	FM-200 (HFC-227ea)
Extinguishing Concentration	Typically 7.0% - 8.6% by volume (for Class A & B)
Cylinder Pressure	42 bar @ 21°C (Nitrogen Pressurised)
Discharge Time	< 10 seconds
Nozzle Pressure	Min. 7 bar
Standards	NFPA 2001, ISO 14520, UL/ULC

⚠️ Design & Installation: Must be designed and installed by certified engineers. Room integrity testing (door/wall seals) is crucial for system effectiveness.
